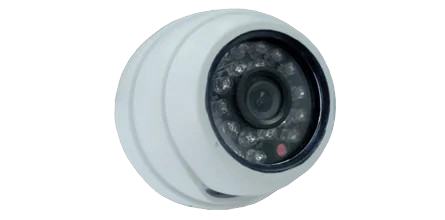

Universal Mount Digital Camera – IR Enabled
Visually inspect your enterprise assets and resources via your browser from anywhere in the world
The AKCP UMDC has IR night vision capability and delivers between 15fps and 30fps depending on the resolution selected.
Universal Mount Digital Camera – IR Enabled
Use this Universal Mount Digital Camera (UMDC) digital camera to visually inspect your enterprise assets and resources via your browser from anywhere in the world. The AKCP UMDC provides optimum features for deployment with the AKCP securityProbe series. It has IR night vision capability and delivers between 15fps and 30fps depending on the resolution selected.
The AKCP UMDC is ideal for use with the securityProbe 5E, capable of accepting 4 cameras, and the AKCess Pro Server application, that can connect many UMDC’s for recording and playback of video footage.
Still images are in universal JPG digital format, allowing easy use of third party host tools to store and analyze your pictures.
Feature
Rich Notification Suite
Real-time and archived video and pictures can be included in your alert notifications according to your preferred hierarchy of redundant alert notifications. Choose any notification combination and sequence from our Rich Notification Suite, to escalate unresolved alerts.
- SMS
- Email
- MMS
- Telephone call
- Fax
- SNMP
- Relay switch automates corrective action
| Image sensor : |
|
| Electronic Iris : | 1/50 – 1/100,000 (PAL); 1/60 – 1/100,000 (NTSC) |
| Picture Elements : | 640 (H) x 480 (V) |
| S/N ratio : | 50 dB |
| Video : | BNC Male video composite out 1 Vp-p 75 ohm |
| Power : | 2.5 mm Male plug |
| Lens type : | fixed |
| Focal length : | 3.6 mm |
| Viewing angle : | 92 deg |
| Dimensions (Ø x H) : | 110 x *75 mm |
| Weight : | 0.2.5 kg |
| Power : | 12 V DC external |
| Power consumption : | 300 mA |
| Operating temp. range : | -10 – +50 ºC |
| Operating humidity range : | 10 – 80 % |
| RH, non-condensing |
Note: The maximum length of the cable between the camera and the securityProbe is dependent on the type of cable you use. Typically, professional video applications use RG-6 type cables. In practice, the maximum length of RG-6 cable is about 100m. For best results, we recommend you use BNC connectors and RG-6 coaxial cable to connect the camera to your securityProbe.
Power supply only available in Euro or US style connectors. Other connection types may require an adapter.
