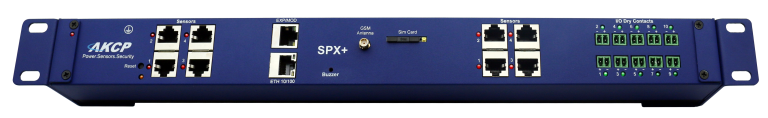

sensorProbeX+

The SPX+ is a versatile IP based sensor monitoring device. Connect up to 16 of AKCP’s intelligent sensors, 20x dry contact I/O’s, 0-5VDC or 4-20mAmp inputs, control relay outputs and monitor third party devices.

Customizable Sensor Monitoring Device

The SPX+ is the world’s most advanced sensor monitoring device. With a unique design that allows for rapid customization, build a unit paying for only the features you need. Select from standard configurations or build your own with our online configuration tool that can be submitted for quotation. A wide variety of options are available. Choose from the number of sensor ports, dry contacts, or Analog inputs you require, add in a mini UPS, or a cellular data modem. Expand the unit with EXP or BEB expansion to have more sensors from a single IP address than ever before.

  • Equipped with Ethernet, Modbus RS485, EXP and BEB communications
  • Compatible with SPX+ EXP and BEB units, expand the capabilities of your device.
  • 1U rackmount brackets, Tool-less 0U mounting or DIN rail mounting options.
  • Notification by SNMP, Email, SMS and built in buzzer.
  • Compatible with all AKCP Intelligent sensors.
  • Start with base configuration and build up your device with modules you need.
  • Up to 80 virtual sensors.
Dimension :44 (W) x 46 (H) low profile design
Expansion Port :EXP port connecting EXP Remote Units
BEB port for connecting SPX+ BEB Remote Units – Maximum 2x BEB units per SPX+
Mounting :0U Toolless rack mount, optional wall mount brackets, horizontal 1U mounting or DIN rail brackets.
Power :External 5V 3A Power Adapter
Input Voltage and Current ratings : 100V~240V – 0.22A
Status Indication :LED for power, network connection, sensor online and threshold status.
Internal Buzzer for audible alerts
Operating Environment :Temperature : Min. 0°C – Max. 70°C (Industrial Option available for Min. -25°C – Max. 70°C)
Humidity : Min 20% – Max. 80% (Non-Condensing)
MTBF :1,400,000 Hours based on field experience with sensorProbe units
Base Unit :4x Sensor Ports for connecting AKCP sensors
1x Expansion Out Port (Optionally used for Modbus)
1x 10/100 Ethernet Port
Max Sensors :Maximum of 400 onlined sensors, including Expansion Units and virtual sensors.
SPX+ Modules :

4x Sensor Ports module

10x or 20x Dry module, available in 3 configurations :

  • Configurable I/O dry Contact (0VDC/5VDC)
  • Input only 5V Dry Contact, opto-coupled input
  • Isolated input Dry Contact, from 5V to 20V voltage input signal
  • Isolated AC Detection Input 5-30ACV @ 44mA

4G cellular data modem with extenal antenna. (GSM/CDMA)

4x 0-5VDC / 4-20mA input for third party sensors

4x Mini relays for driving larger relays

2x 0-5VDC / 4-20mA input for third party sensors with 2x Mini relays

Internal mini UPS, 4x AA rechargable batteries

SPX+ Licenses :

Virtual Sensor pack: VS
Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors.
Every SP1+ comes with 5 free virtual sensors

Radius: RAD
User authentication through a RADIUS server.

TACACS+: TAC
User authentication through a TACACS+ server

sensorProbeX+ technical drawing
