sensorProbe2+ LCD

Local display of up to 8 sensor values, indication of critical status and network connectivity for remote monitoring via the internet through SNMP, Modus TCP/IP, Modbus RS485 (optional) and MQTT

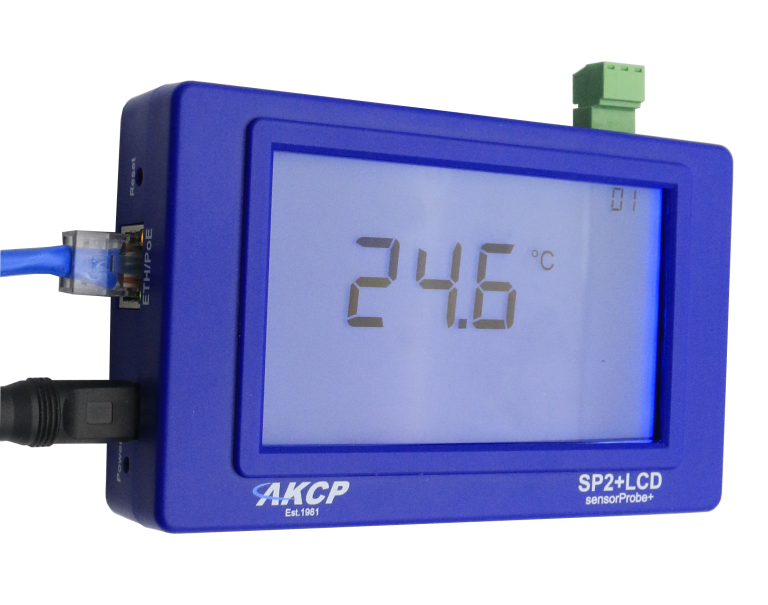

sensorProbe2+ LCD

4x Intelligent Sensor Ports, 1x Dry Contact I/O with LCD Display

The sensorProbe2+ LCD (SP2+LCD) is based on our popular SP2+ device. Equipped with 4 sensor ports and a dry contact I/O it is ideal for server rooms and monitoring of individual racks. Connect any AKCP intelligent sensor such as thermal maps, sensor status light, contactless current meters and water leak detection. Mounted on the front, or with a 45° bracket on the top of your rack, the LCD vides a visual display of all sensor status and values. An optional external cellular data modem can be connected to the dedicated UART modem port.

The SP2+LCD comes with optional PoE, 5VDC Locking DC Jack connection or both for dual power with redundancy. External DC 12-24 and 40-60 VDC power supplies are also available.

SP2+LCD mounted with 45 degree angle bracket ontop of rack
DimensionSize 135 x 81 x 36 mm
Weight 0.4 Kg
Network InterfaceStandard 10/100 Mbps Full Duplex
Ethernet RJ-45 Port
Mounting0U rack-mountable
Built in DIN Rail Clip and cable tie loops
Screw hole mounting
Power RequirementsPoE IEEE 802.3af support
External 5.5V 3A Power Adapter Input Voltage and Current ratings : 100V~240V – 0.22A
Status IndicationLCD display for sensor values, status and IP address
LED indication for Power
LED for network connectivity
LED for sensor online and threshold status
RJ-454 x RJ-45 Sensor Ports for connecting AKCP Autosense Sensors
Up to 20 Dry Contact Input (5VDC) using 5DCS input for each sensor port
1x built in Dry Contact I/O
ComponenetsManufactured using highly integrated, low power surface mount technology to ensure long term reliability.
Operating EnvironmentTemperature : Min. 0° C – Max. 70° C
Humidity: Min. 20% – Max. 80% (Non-Condensing)
MTBF1,400,000 Hours based on field experience with sensorProbe units.
Inputs4x RJ-45 Sensor Ports
1x 10/100 Ethernet Port
1x UART external modem port
OutputsConfigurable output signals (0VDC/5VDC) on any of the 4 RJ-45 sensor ports
Max SensorsMaximum of 400 onlined sensors, including virtual sensors.
Maximum Number of Access Control Users500 Users (Pro License required)
Supported ProtocolsSNMPv1, SNMPv2c, SNMPv3
Modbus TCP, Modbus RS485
MQTT, MQTTS
Rsyslog
RADIUS
TACACS
HTTP, HTTPS
IPV6
NTP
VPN
Encrypted E-mail (SSL/TLS, STARTTLS)
Pro License Features

Pro licensing: SP2+LCD-PRO-L:
Unlock the following features: Maps, 3rd Party Modbus, IPv6, SNMPv3, VPN, Access Control User, Heartbeats, Modbus, Remote UI Access

Virtual Sensor pack: VS
Virtual sensor (pack of 5 sensors). Maximum of 80 virtual sensors.
Every SP2+LCD comes with 5 free virtual sensors

5 Dry Contacts: DCS
5 dry contact input sensors (per port) 1 Licenses equal to 1x RJ45 unlocked

Radius: RAD
User authentication through RADIUS server

TACACS+: TAC
User authentication through TACACS+ server

SP2plus LCD technical drawing
