Battery Terminal Temperature Sensor

Monitor your battery temperature to ensure optimum performance.Designed to easily connect to battery terminals.

Battery Terminal Temperature Sensor

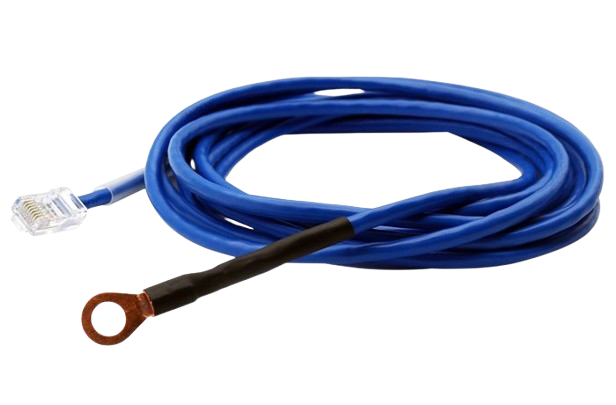

The BTTS connects directly to the Negative Battery Terminal and provide readings to aid in monitoring the battery health, and internal temperature. As the battery terminal provides the closest thermal connection to the batteries internal plates it will give you the closest accuracy to the actual battery temperature. The sensor chip is insulated to help protect it from interference from ambient temperature fluctuations. For a more complete monitoring solution, the BATTMON sensor combines terminal temperature monitoring with voltage and current of the battery.

Temperature
Measurement Range-55°C to +75°C
-67°F to +167°F
Measurement ResolutionsecurityProbe and sensorProbe+ series
0.1°C increments
0.2°F increments
sensorProbe series
1ºC increments
1ºF increments
Measurement AccuracysensorProbe+ series and securityProbe series
±0.5°C accuracy from -10°C to +75°C
±0.9°F accuracy from +14°F to +167°F
sensorProbe series
±1°C accuracy from -10°C to +75°C
±1°F accuracy from +14°F to +167°F
Interface
Communications cableRJ-45 jack to sensor using UTP CAT5e/6 cable
Power sourcePowered by the base units. No additional power needed
Power ConsumptionTypical 7.25mWatt, 1.45mA
Maximum Cable Length Run length is 1000 feet (300 meters) with low capacitance shielded cable or UTP
Sensor typeSemiconductor, microprocessor controlled
Dimensions56 x 55 x 33.3 mm
MountingDIN rail mounting
Screw mounting
Sensor count1
