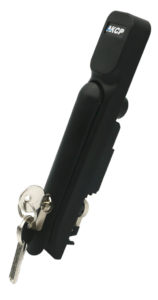

RFID Swing Handle Cabinet Lock
RFID Cabinet Locks (SHL) have a universal fit for most industry standard cabinet panel preparations. Easy to install, connects to any sensorProbe+ base unit. Complete control over your cabinet security.
Secure and Protect IT Cabinet Assets
Manage who has access to your cabinets, and when. AKCPro Server provides a complete audited trail of access events on a per cabinet or employee basis. Know who accessed which cabinet and when. Swing handles can be unlocked with a manual key override, an authorized RFID card, or remotely under software control. The RFID Cabinet Lock is part of our Rack+ intelligent computer cabinet solution, combine with In-Line Power Meters, Cabinet Thermal Maps, Sensor Status Lights and LCD displays. Up to 12 RFID cabinet locks can be connected to a single SPX+ device, spreading the cost of the controller over multiple cabinets for a cost effective solution.
| Card Reader | |
| Supported Cards : | EM-Card, 125Khz Proximity cards, 26bits K4100/EM4100/EM4200/T5577 |
| Proximity Reading Range : | 0-3cm |
| Handle Lock | |
| Access Control : | Up to 500 users |
| Ambient Temperature : | -25°C to 75°C |
| Ambient Humidity : | 10%-90% |
| Built-in : | RFID Antenna, Motor |
| Fail-Secure : | Integrated key lock for manual override |
| LED Indicator : | RGB Color LED : Lock status and Access Control status |
| Locking Control : | Remote lock and unlock from the sensorProbe+ unit via Web Interface, SNMP or AKCPro Server Calendar enabled locking and unlocking control Notification locking and unlocking control |
| Interface | |
| Communications cable : | RJ-45 jack to sensor using UTP CAT5e/6 cable |
| Power source : | Powered by the sensorProbe+ family units. No additional power needed |
| Working Voltage : | DC 5V |
| Power Consumption : | Typical 0.35 mWatt, 70 mA Peak 1.75 mWatt, 350 mA |
| Communication Distance : | Run length is 12 feet (5 meters) with approved low capacitance shielded cable or UTP |

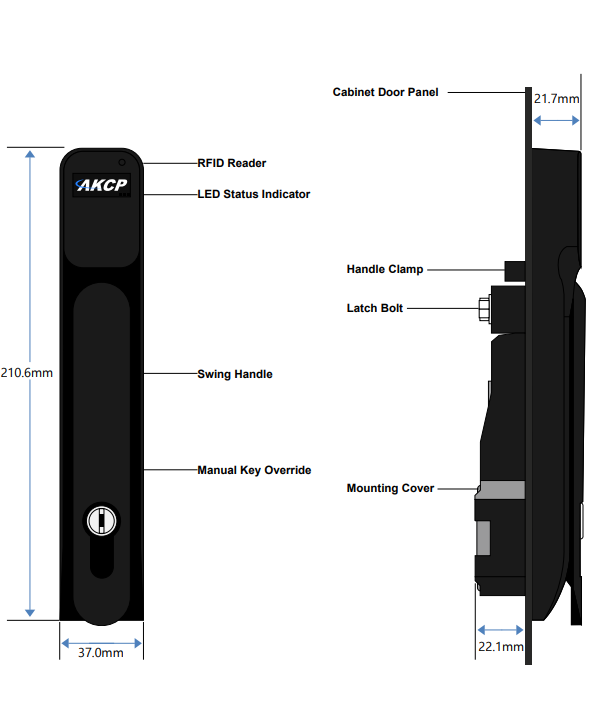

| Dimensions : | |
| Weight : | |
| Important Note: | sensorProbe+ units auto-detects the presence of the RFID Swing Handle Lock sensor |
| Up to 12 RFID Swing Handle Lock sensors per sensorProbe+ unit | |
| – The RFID Swing Handle Lock sensor is only compatible with the sensorProbe+ platform units. – When plugging the first time or after upgrading a sensorProbe+ unit, the sensor’s firmware might be upgraded by the unit and not be available right away. Firmware update must be done on the main module first 4 sensor ports only. | |
RFID Cabinet Lock Features
Rack Map Display
In the sensorProbe+ web interface, and in AKCPro Server, the rack map display gives an overview of your racks current status with connected sensors.
In addition to showing the thermal map values, and the front to rear temperature differential. the rack map will also display the status of the RFID Cabinet Lock, and the doors current position
Multiple Cabinets
Up to 12 RFID Cabinet Locks can be connected to a single SPX+, monitor and control access for 12 cabinets, or 6 cabinets (front and rear doors) from a single IP address. Spread the cost of the controller across multiple cabinets for a cost-effective installation. RFID Cabinet Locks can be placed up to 15 meters cable length from the SPX+ base unit.
