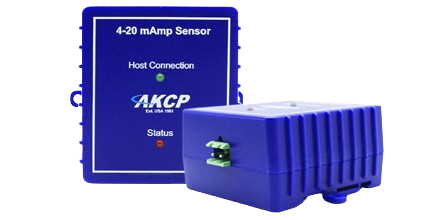

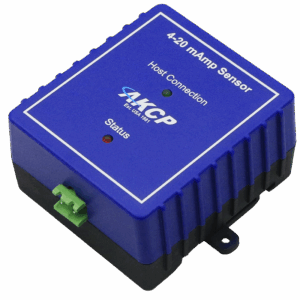

4-20mAmp Converter

The 4-20 mAmp signal converter is used to integrate the sensorProbe with a 4-20 mAmp transmitter. 4-20 mAmp technology is used to communicate analog signals over long distances where electrical interference is a problem. This solution is often used in the process control industry to collect the analog values from a wide array of remote sensors.

Current signals are much less susceptible to noise than voltage signals. A voltage signal can be converted to current and then broadcast over a long distance before it is converted back to voltage and read by the sensorProbe.

4-20 mAmp transmitters are common in the industry for use with high quality sensors. With the 4-20 mAmp converter these sensors can now be integrated into the sensorProbe enhancing their value with the addition of graphing, web interface, email interface, thresholds, and limits.

• Converts current levels from 4 – 20 mA to 0.8 – 4.0 V voltage levels
• Maximum linearity of ± 0.09%
• Maximum accuracy of ± 0.15%
• Operates from a single +5 V DC Power Supply which is powered by the sensorProbe
• Fully Rated Over the -40°C to 85°C Industrial Temperature Range
• 2 LED show status of the current loop and the power supply
• Up to two I V converters per sensorProbe2, 8 per sensorProbe8
